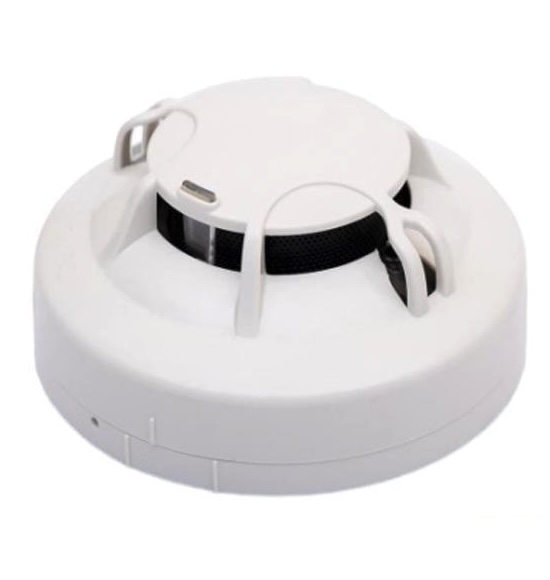

Smoke and Heat Combined Detector

TC5163 Addressable Heat & Smoke Multi Detector:
1. There are 2 conductor pieces with terminals on the base.
Loop of the detector should be connected with two terminals (polarity-insensitive).
After the base is fixed firmly, rotate the bottom of detector and base clockwise, and then the detector will be fitted to the base
2. 1.0mm2 or above RVS twisted pair, laid out through metal conduit or flame-resistant conduit.
TC5163 Smoke and Heat Combined Detector Features:
1. Supervising external circuits function for input and output
2. single chip processes data in real time
3. drift compensation and dust accumulation and report pollution self-diagnosis function
4. non-polarized two wire bus signal fire alarm
TC5163 Smoke and Heat Combined Detector Specification:
Operating Volate: loop 24V(16~28V)
Operating Current: Monitoring current: ≤ 0.3mA ;Alarm current: ≤ 0.9mA
Weight: About 110g
Protected area: 20~30m2
Operating environment: Temperature: -10℃~+55℃; relative humidity: ≤95%, non-condensing
Dimension: 100mm×51mm
Mounting hole distance: 60mm
Ingress protection rating: IP23
Material and color: ABS;Milky white
Maximum transmission range: 1500m
